Composite manufacturing

Resin infusion manufacturing

Dry reinforcement is placed in the mold, sealed under vacuum and infused with resin. The layup, vacuum integrity and resin flow are controlled to achieve the target fiber-to-resin ratio, thorough wet-out and repeatable laminate quality.

Request a Quote
Process
Vacuum resin infusion
Resin systems
Epoxy
Cores
PMI foam, Nomex and aluminum honeycomb
Prepared vacuum bag
Prepared vacuum bag

01Overview

Overview

Resin infusion is our core laminating process. It is efficient and scalable for small to medium production runs, and cleaner than wet layup.

It is ideal for large, curved or custom parts and for carbon sandwich panels with PMI or honeycomb cores. Read our comparison of resin infusion and prepreg in the Engineering Journal.

02Process

Resin Infusion

  1. Step 01

    Layup

    Dry carbon, aramid or hybrid fabrics and cores are placed in the prepared mold.

  2. Step 02

    Vacuum bagging

    The layup is sealed and checked for vacuum integrity.

  3. Step 03

    Infusion

    Resin is drawn through the reinforcement under vacuum for full wet-out.

  4. Step 04

    Cure & demold

    Parts are cured, demolded and passed on to trimming.

Process in pictures

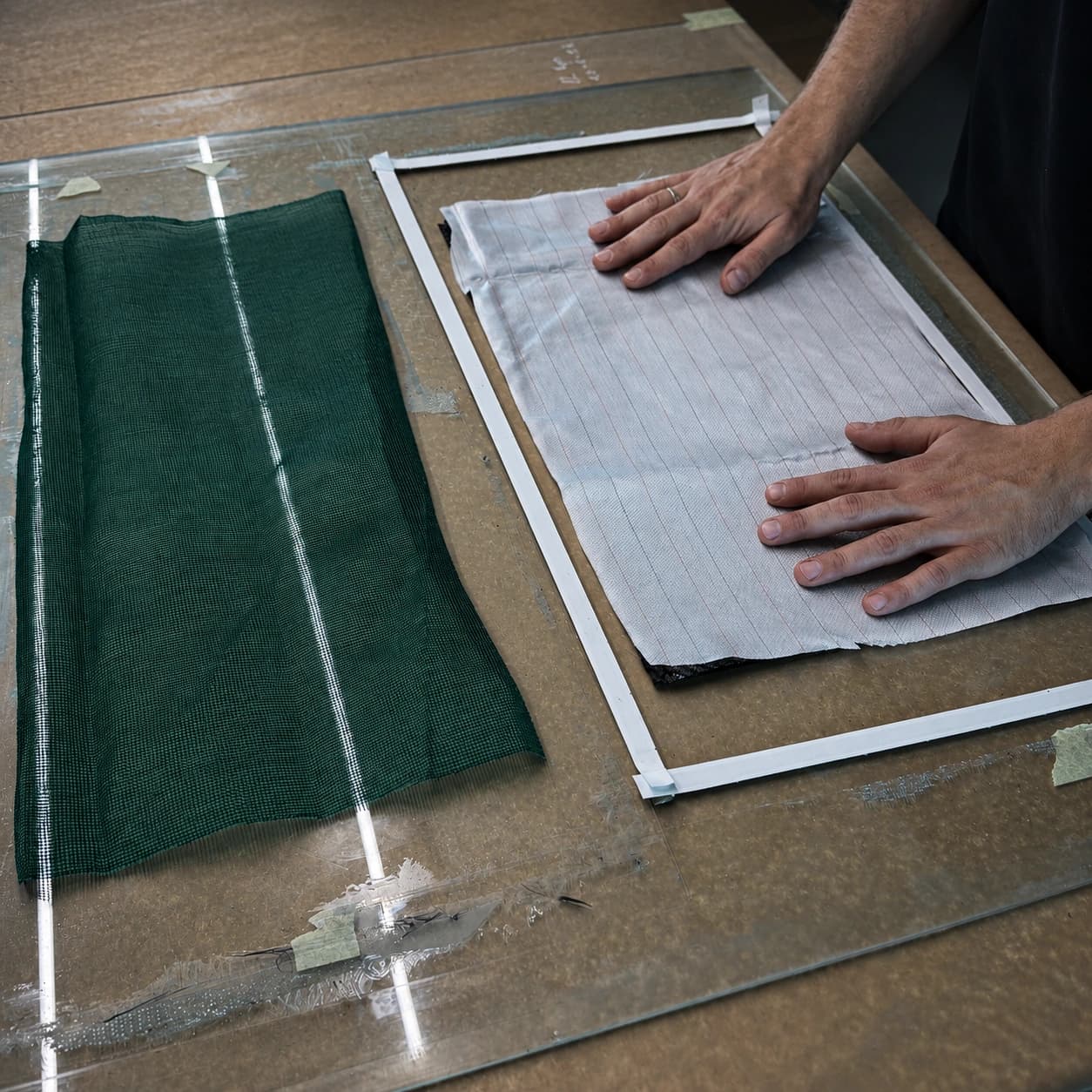

  • 01Process layer placement

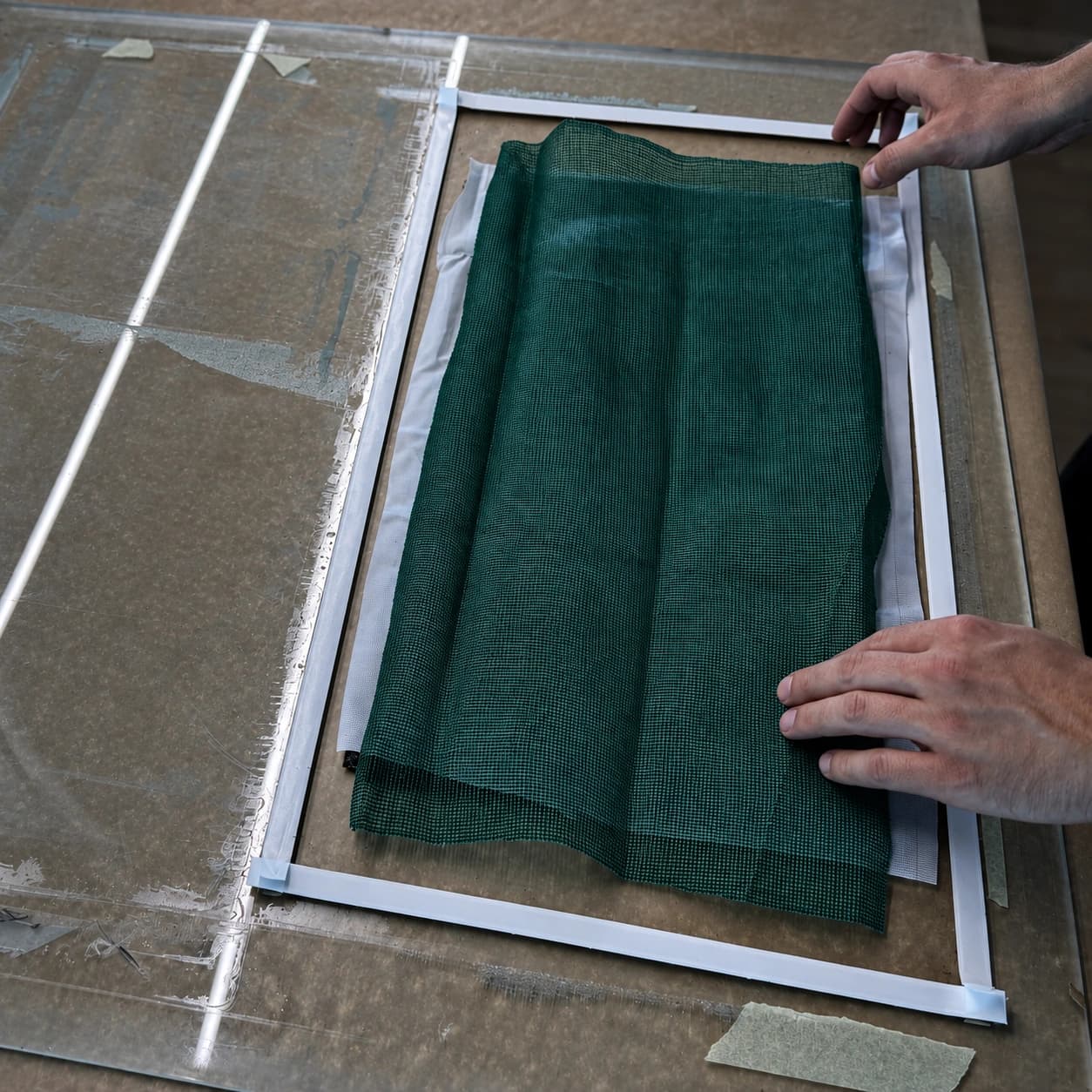

  • 02Placing the resin flow mesh
  • 03Prepared vacuum bag
Process layer placement

01Process layer placement

1 / 3

03Applications

Applications

  • Carbon sandwich panels
  • Large and curved structural parts
  • Aerospace and automotive structural components
  • Marine decks and structures

Industries served

04Projects

Related projects

Journal

From the Engineering Journal

All articles

Capabilities

Have a composite part in mind?

Send us your drawings, a sample or just an idea. Our engineers will review it and get back to you with a clear path to production.
